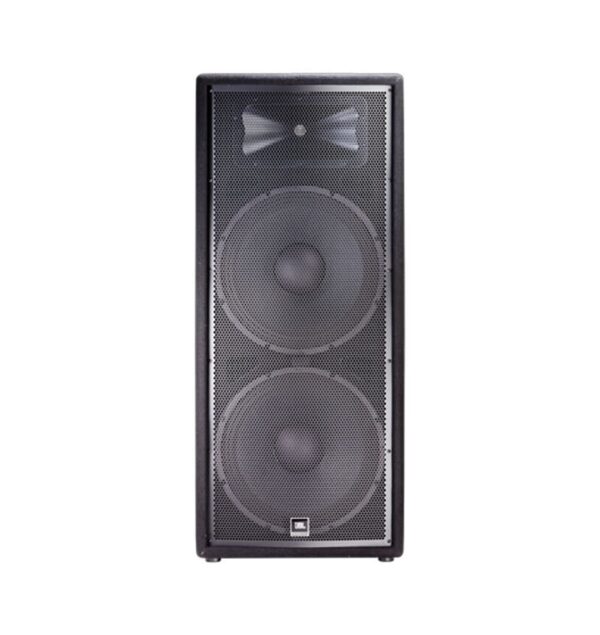

JBL JRX 225D Passive PA Speakers

Brand: JBL
Model: JRX225D
Type: Dual‑15″ 2‑way passive full‑range loudspeaker
Power Handling: 500 W continuous, 1000 W program, 2000 W peak
Low Frequency Drivers: Dual 15″ woofers
High Frequency Driver: 1″ polymer diaphragm compression driver
Frequency Range: 45 Hz – 20 kHz (‑10 dB)
Frequency Response: 55 Hz – 18 kHz (±3 dB)
Sensitivity: 99 dB SPL (1 W / 1 m)
Maximum SPL: 132 dB peak
Coverage Pattern: 90° horizontal × 50° vertical nominal
Nominal Impedance: 8 Ω
Connectivity: Dual combination Speakon / ¼″ inputs (parallel)
Crossover Frequency: ~1.8 kHz
Enclosure: Rugged plywood cabinet with protective grille and integrated handles
Pole Mount: Dual‑angle 35 mm socket
Suspension Points: Multiple M10 fly points
Dimensions (H × W × D): 998 × 546 × 488 mm
Weight: 38.6 kg
