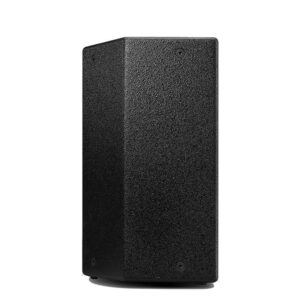

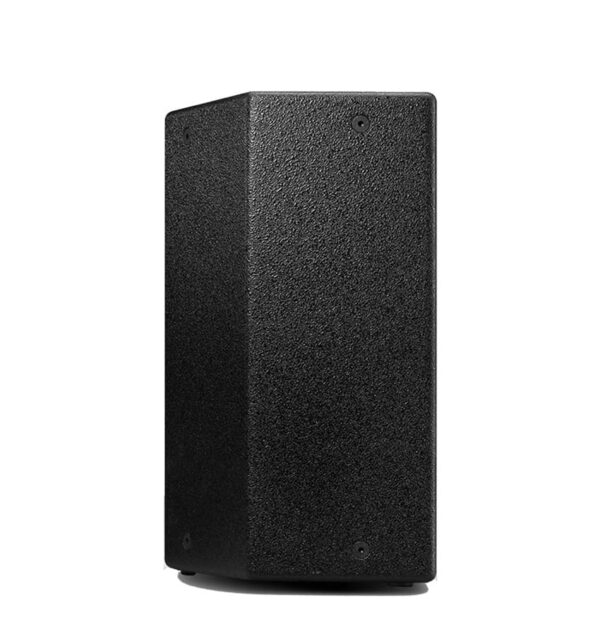

JBL PRX 312MD Passive PA Speakers

Brand: JBL
Model: PRX312MD
Type: 12″ 2‑way passive full‑range loudspeaker (stage monitor / PA)
Power Handling: 250 W continuous, 1000 W peak
Recommended Amplifier Power: 250 W – 500 W into 8 Ω
Low Frequency Driver: 12″ woofer
High Frequency Driver: 1″ compression driver with Progressive Transition™ waveguide
Frequency Range: 60 Hz – 16 kHz (-10 dB)
Frequency Response: 70 Hz – 12 kHz (±3 dB)
Sensitivity: 99 dB SPL (1 W / 1 m)
Maximum SPL: 129 dB peak
Coverage Pattern: 90° horizontal × 50° vertical nominal
Nominal Impedance: 8 Ω
Connectivity: Speakon NL‑4 and ¼″ TS phone jack (parallel)
Crossover Frequency: 1.8 kHz
Enclosure: Rugged MDF cabinet with dent‑resistant grille and multiple suspension points
Mounting: 36 mm dual‑angle pole-mount socket; 9 × M10 suspension points
Dimensions (H × W × D): 567 × 381 × 323 mm
Weight: 16.7 kg
